3-axis acceleration sensor module

  • 3-axis acceleration sensor module
  • (including piezoresistive acceleration sensor)
  • Model
  • PRM-01

3-axis acceleration sensor module

PRM-01

Outline

The 3-axis acceleration sensor module WACOH-TECH is a modular product of a 3-axis acceleration sensor made by semiconductor technology and micromachining technology and contained in a case, from which output wiring is led out in cabling. This one sensor module can detect three axes (Ax, Ay, and Az) simultaneously. Since the 3-axis acceleration sensor is mounted on the board in the case, outputs can be easily checked by simply connecting the protruding wiring to measuring equipment, etc.

It can be used for a wide range of applications, such as the first use of an acceleration sensor or immediate testing.

Applications

  • Testing of airbag system
  • Vibration measurement and control
  • Seismometers (seismoscopes), (crime preventive vibration sensors)
  • Robot arm control
  • Fall detection testing, pedometers

Features

3-axis (Ax, Ay, Az) measurement can be made by one sensor module.

Acceleration detection range ±3g (1g=9.81m/s2)

Static acceleration and dynamic acceleration can be measured
Fall detecting function equipped
Temperature sensor output terminal equipped

Spec

ItemConditionSpecUnit
Min. Typ. Max.
1Operating voltage Temperature -25℃~+75℃ 2.2 3 3.6 V
2Current consumption Vcc=3.0V 0.36 0.52 mA
3Operating temperature -25 75
4Acceleration detection range -3 +3 g
5Sensitivity Operating voltage 3V, within the operating voltage and temperature ranges 306 333 360 mV/g
6Zero-g voltage Operating voltage 3V, within the operating voltage and temperature ranges -45 0 45 mV
7Cross-axis sensitivity 2 6 %
8Linearity of sensitivity -2 +2 %
9Impact resistance By pendulum impact tester 5000 g

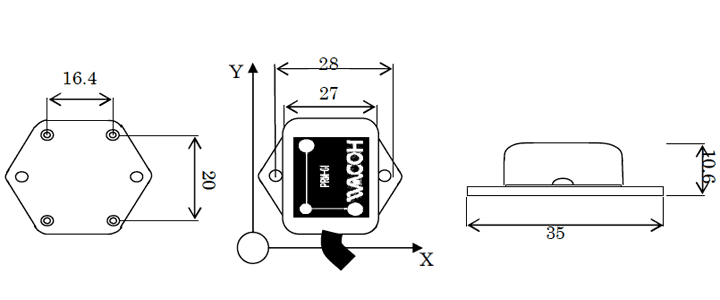

Outer dimensions

外形寸法

Signal table for cable

No.Cable colorSignalNo.Cable colorSignal
1 Orange/red Acceleration X 6 Gray/black ZeroG
2 Orange/black Acceleration Y 7 White/red STBYB
3 Yellow/red Acceleration Z 8 White/black NC
4 Yellow/black Tout 9 Pink/red Power supply (+3V)
5 Gray/red Vref 10 Pink/black Power supply (GND)

*At the time of operation, short-circuit STBYB to power supply (+3V).
